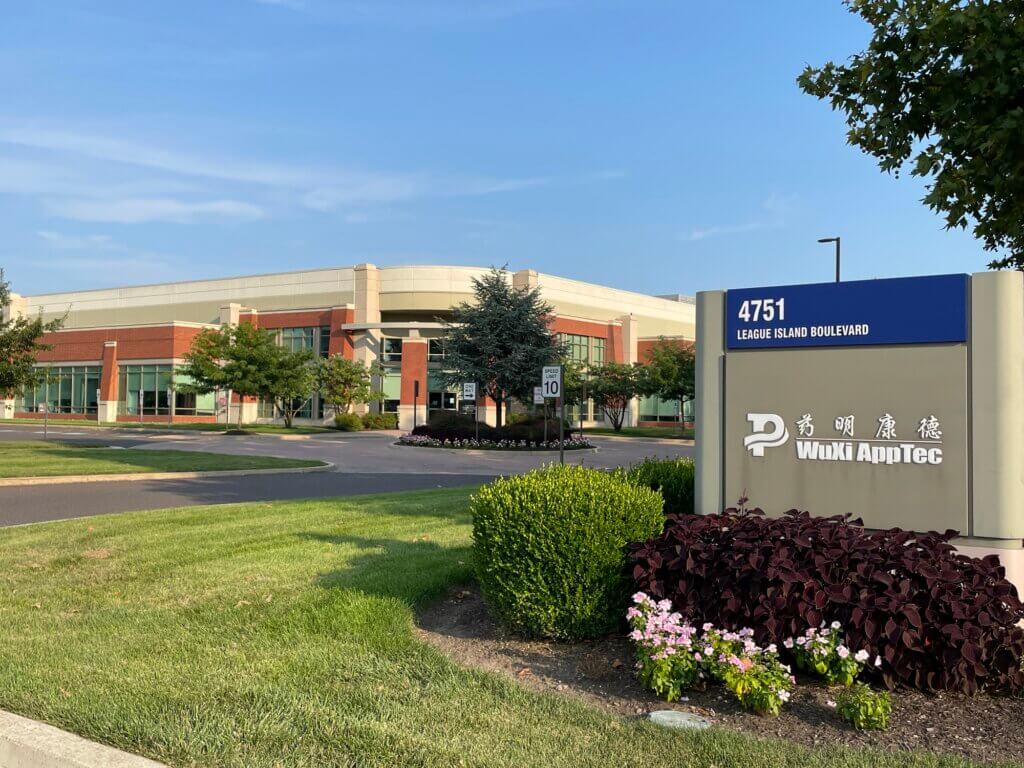

WUXI 4571 MAIN Sign View
WuXi AppTec Co.

Located in the former Philadelphia Naval Yard, this mixed-use corporate and healthcare space was originally designed as a one-story research center featuring office space and a clean room for WuXi Apptec to perform oncology research and product development. Just as construction was beginning, it was deemed necessary to add additional space to the approved site plans to accommodate the research goals of the company.

Life Sciences & Healthcare Commercial & Corporate Office New Construction
The Details

Have an upcoming project?

Let’s build better together. We look forward to learning about your vision and goals.

Get In Touch

High-Level Collaboration for Seamless Integration

The need for more space meant dramatic design changes and a complete reevaluation of all MEP work as well as a comprehensive structural review to incorporate an additional 75,000 square-feet, including a new second story. Penntex worked closely with owner Prologis, tenant WuXi Apptec and project subcontractors to expedite evaluation and planning to accommodate the change – determining the most efficient, expedient and cost-effective options.

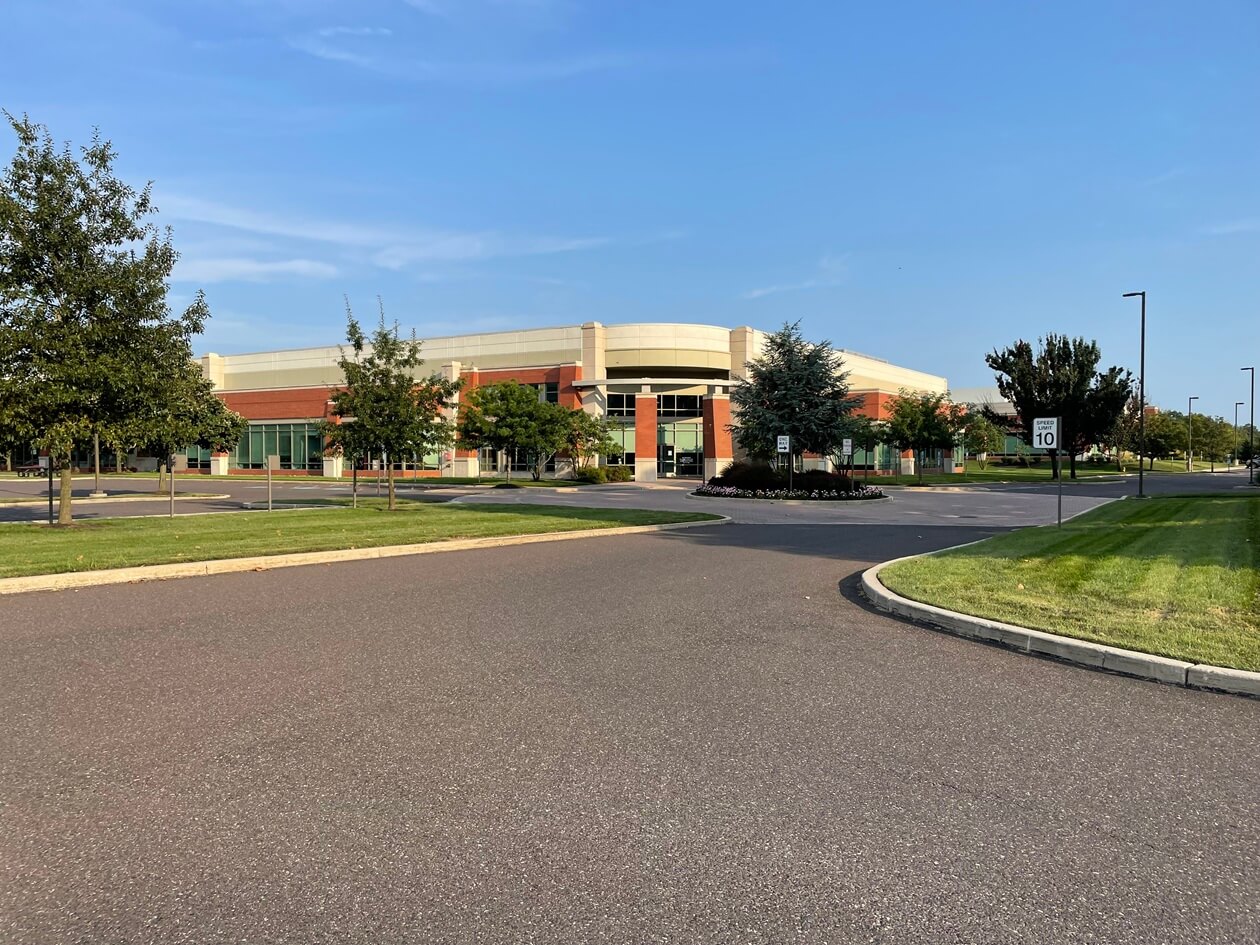

WUXI 4571 EXTERIOR

Coordinating Changes Inside and Out

The addition of the added square footage and second floor facility meant planning for and executing dramatical changes inside and out, including:

  • A large 5,000-square-foot, two-story mechanical and electrical room was added to the project to house the mechanical, process and purification systems for the new lab facility.
    The roof structure was revised from a simple joist-framed roof to a full structural-beam-framed design to handle the additional loads of the HVAC equipment necessary to support operations in the expanded space.
  • The exterior pre-cast wall envelope was modified to coordinate and add overhead door openings to facilitate equipment installations and dock equipment locations.

Optimized Spaces for Pharmaceutical Research

During construction, Penntex also teamed up with Hoddess Construction and installed their design of major lab clean rooms utilizing insulated metal sandwich panels (IMSP), interstitial, walkable, ceiling and wall panels. All lab clean room floors were a combination of stonclad UR silver mortar and top-coat epoxy floors with integral base and seamless vinyl coverings. Penntex also completed the 30,000 square-foot office and lobby fit-out included in the project specifications.

Efficiency & Function: LEED Gold Certified

Following completion, the facility received a LEED Gold certification. Factors contributing to certification included:

  • The project was a former brownfield that was redeveloped
  • Integration of low emission designated parking stalls with signage
  • Use of recycled concrete and steel materials
  • Added and upgraded windows throughout for better lighting
  • TPO roof
  • Aligned with all requirements for plumbing flow rates and sprinkler and fire alarms
